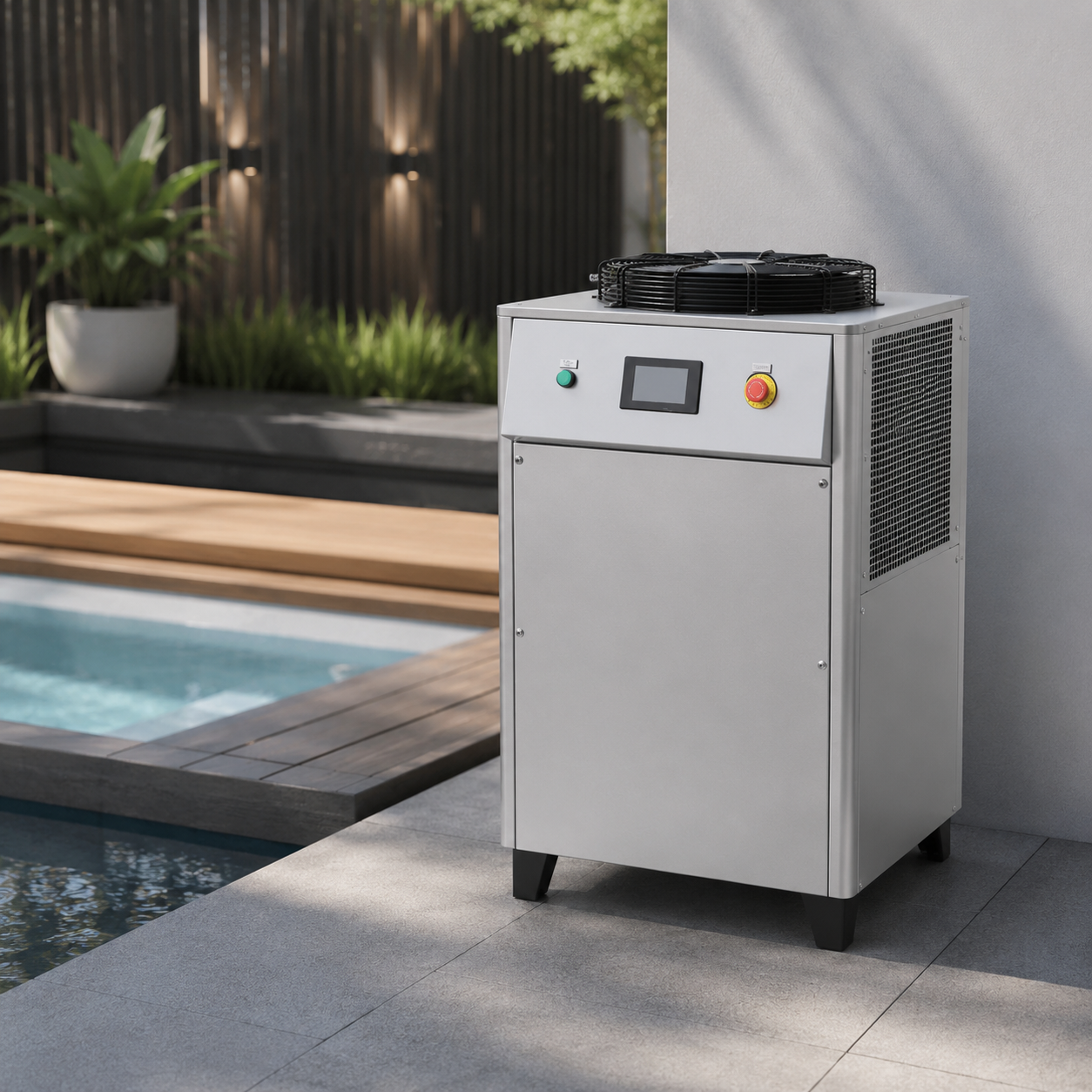

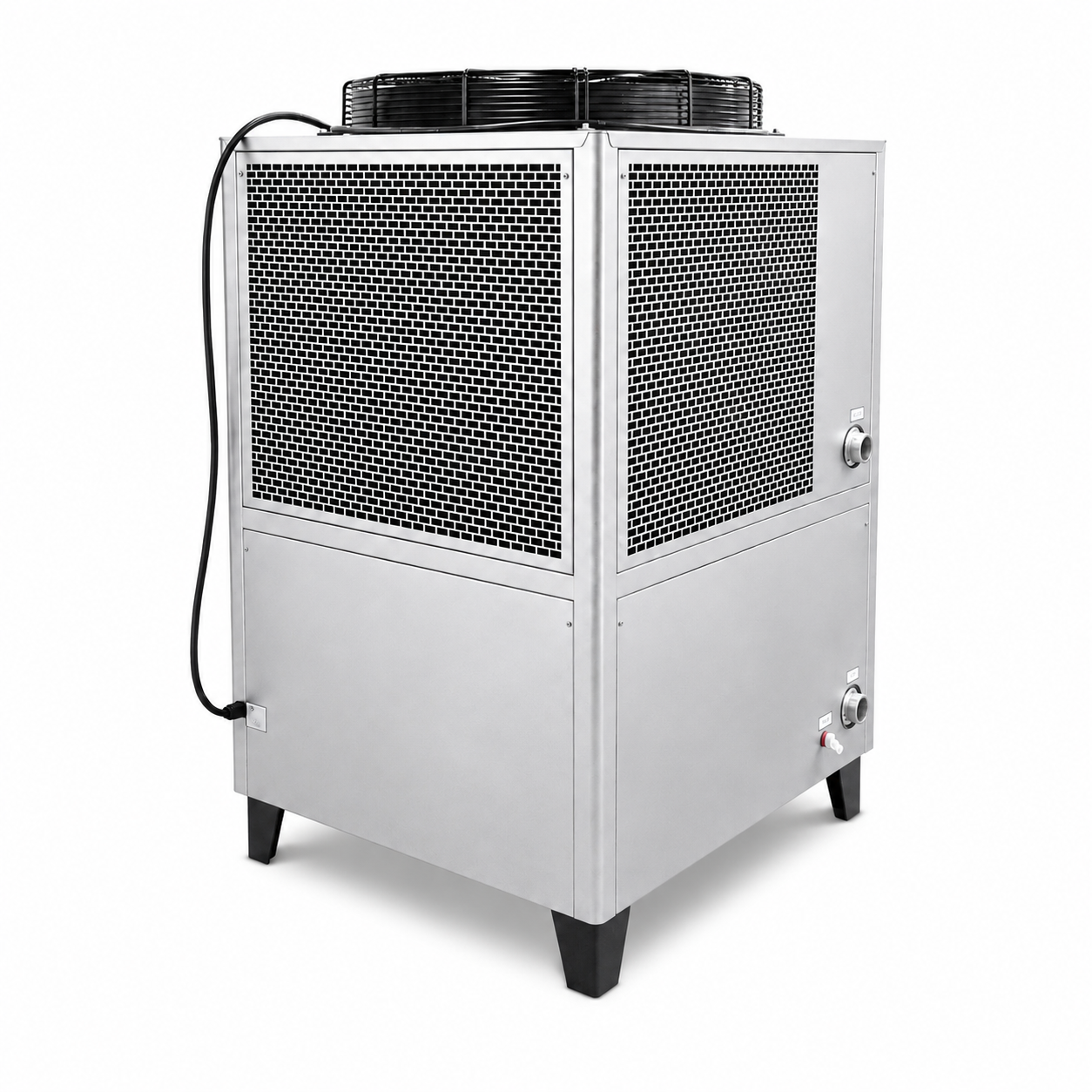

ColdCare TITAN 5™ Commercial Pool Chiller & Heater
ColdCare TITAN 5™ Commercial Pool Chiller & Heater
Low stock: 1 left
Couldn't load pickup availability
Free shipping
2-year warranty
Warranty terms apply
3°C–42°C Temperature Control
Powerful cooling and heating for commercial cold plunges, recovery pools and hydrotherapy applications.
Commercial 5HP Performance
Up to 14.6kW cooling and 18kW heating capacity for large-volume and high-demand installations.
Three-Phase Commercial System
Engineered for permanent 380–400V three-phase installation by qualified electrical professionals.
Built for Professional Facilities
Designed for hotels, gyms, recovery centres, sports facilities and custom commercial pool projects.
Collapsible content
Specifications
Electrical Requirements
• AC 380–400V, 3-Phase, 50/60Hz
• Dedicated Circuit Required
• Hardwired Installation
• Installed by Qualified Electrician
Dimensions
Net Weight:
• 114 kg
Dimensions (L × W × H):
• 68 × 68 × 100 cm
Cooling Capacity:
• Up to 14.6 kW
Heating Capacity:
• Up to 18 kW
Operating Temperature:
• 3°C – 42°C
Power Supply:
• AC 380–400V, 3-Phase, 50/60Hz
• Hardwired Installation (No Plug Supplied)
Refrigerant:
• R410/R32
Ingress Protection:
• IPX4
Controller:
• Full-Color Touchscreen
• Wi-Fi Enabled
Installation:
• Indoor or Sheltered Outdoor Commercial Installation
Features
• Automatic Energy-Saving Temperature Control System
• Intelligent Cooling & Heating Operation (3°C–42°C)
• Wi-Fi Remote Monitoring & Control (iOS & Android)
• 5" Industrial Full-Color TFT Touchscreen
• Automatic Fault Detection & Alarm System
• High-Pressure & Low-Pressure Protection
• Compressor Overload & Overheat Protection
• Phase Sequence & Phase Loss Protection
• Water Flow Protection System
• Leakage Protection for Electrical Safety
• Titanium Heat Exchanger for Fresh & Salt Water
• Indoor & Outdoor Installation (IPX4 Rated)
• Heavy-Duty Powder-Coated Steel Cabinet
Cooling Times
Cooling & Heating Performance
Cooling and heating performance depends on total water volume,
ambient temperature, insulation, plumbing layout and site conditions.
ColdCare TITAN 5™ is engineered for continuous commercial operation,
delivering powerful temperature control from 3°C to 42°C for
professional cold plunge and hydrotherapy systems.
Triple Cleanse
Commercial Water Treatment System
I. 20-Micron Precision Filtration
Designed to remove fine suspended particles and maintain crystal-clear water for continuous commercial operation.
II. Heavy-Duty Pre-Filter Protection
Protects the circulation pump and titanium heat exchanger by intercepting larger debris before it enters the hydraulic system.
III. Ozone Sterilization Technology
Provides continuous water sanitation by reducing bacteria and organic contaminants, helping minimize chemical usage while maintaining superior water quality.
Smart Plunge Control
Commercial Wi-Fi Control System
Remote Access
Monitor and control the TITAN 5™ securely from anywhere using the ColdCare mobile application.
Precision Temperature Control
Set and maintain water temperatures from 3°C to 42°C with intelligent automatic temperature regulation.
Programmable Scheduling
Configure operating schedules to match facility opening hours and reduce unnecessary energy consumption.
Real-Time System Monitoring
Monitor operating status, temperature and system performance for efficient commercial facility management.
